Name: Puzzle Tile
SKU: 0









Puzzle Tile

Key Features

Benefits of Interlocking Puzzle Tile:

- Adhesive-free and aesthetic floor tile for high traffic commercial place: supermarket, workshop, studio etc.

- Highly durable and wear resistant; 34-43 classification use area

- R9, R10 slip resistance level

- Easy and fast to install upon either concrete or old floor covering

- No business downtime; use immediately after installation

- Designer friendly, 200+ designs and colours for option

Technical Details

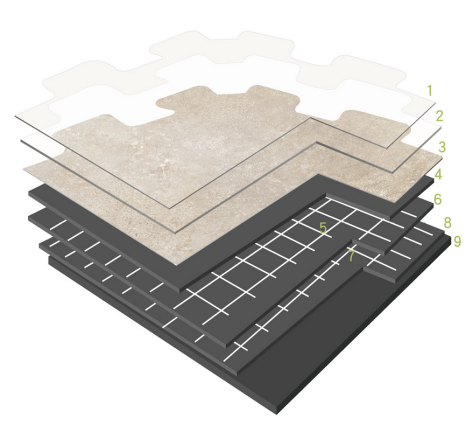

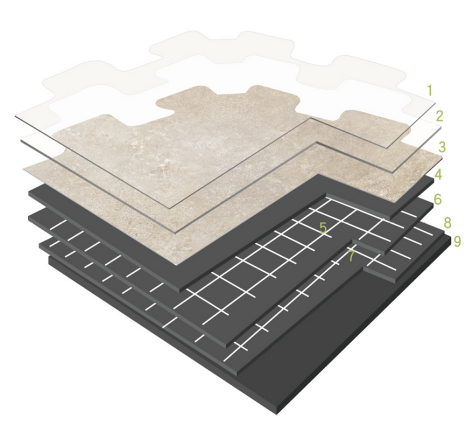

Specifications

1.PUR surface treatment

2.100% PVC Transparent Wear layer

3.Print film

2 & 3 can be replaced by 2mm homogeneous

4.Stablisation middle layer

5,7.Fibreglass grid

6,8.LVT bottom layer

9.Balance layer

Colors

Discover our decors and colours

Performances

CLASSIFICATION
European classification	EN ISO 10874	class	34 - 43
Fire rating	EN 13501-1	class	Bf1-s1
Static electrical propensity	EN 1815	kV	<2
Slip resistance	DIN 51130	class	R10
PERFORMANCE
Wear resistance	EN662	mm3	≤2
Wear group		group	T
Type Binder content	EN ISO 10582	type	I
Dimensional stability	EN ISO 23999	%	≤0.15
Residual indentation	EN ISO 24343-1	mm	≤0.15
Initial curling	EN ISO 23999	mm	≤0.50
Curling after exposure to heat	EN ISO 23999	mm	≤1.0
Peel strength	EN ISO 24345	kgf/50mm	≥6
Height difference	EN ISO 10582	mm	Avg≤0.10, Max≤0.15
Surface treatment	-	-	UV
ENVIRONMENT / INDOOR AIR QUALITY
VOC Emission (TVOC) after 28 days	EN ISO 16000	μg/m³	<100
