  • PVC Industrial Tile

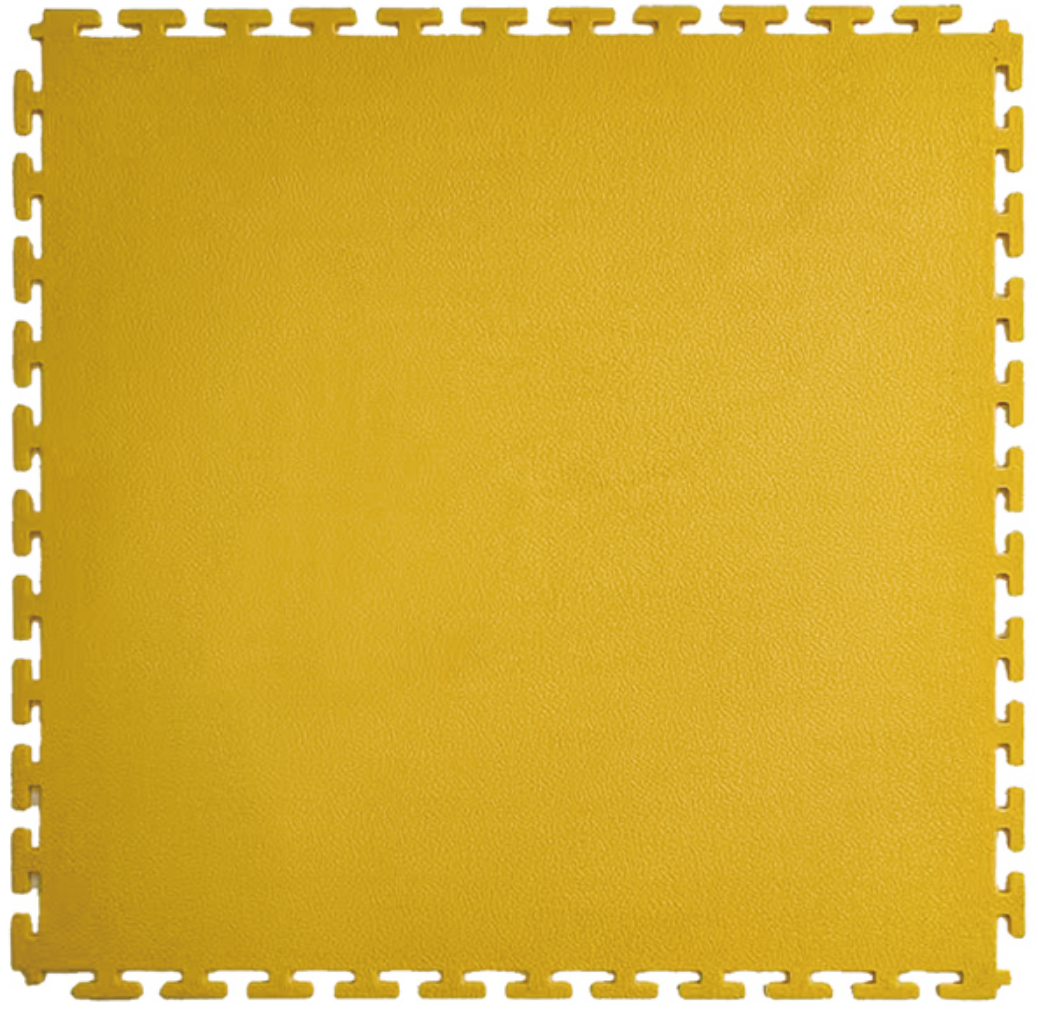

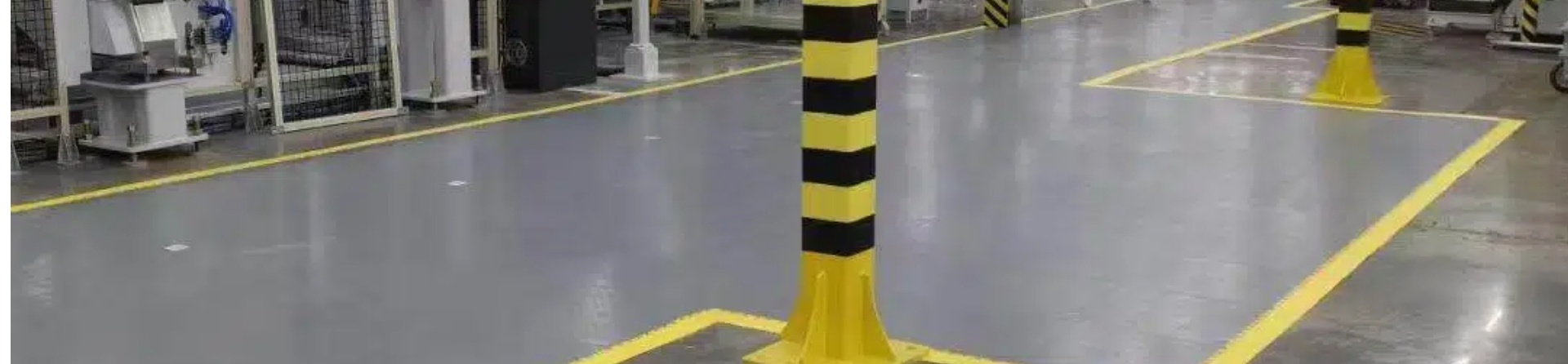

PVC Industrial Tile

Key Features

Benefits of Interlocking PVC Industrial Tile:

- Ideal for high traffic areas, such as garage, workshop, factory, warehouse, etc.

- Adhesive free innovation; easy to install, remove and reuse

- No business downtime; use immediately after installation

- Only minimum subfloor preparation is required

- Available in 6 colours x 3 emboss

Technical Details

Type of floorcovering

Interlocking

Formats

Tile

Tile sizes

500mm x 500mm

Thickness

5mm, 6mm, 7mm

Total weight

5600 g/㎡    5mm

6400 g/㎡    6mm

7200 g/㎡    7mm

Accessories - Ramp

500 x 100      mm

Accessories - Corner

100 x 100       mm

Accessories - Transition

500 x 110       mm


Specifications

1

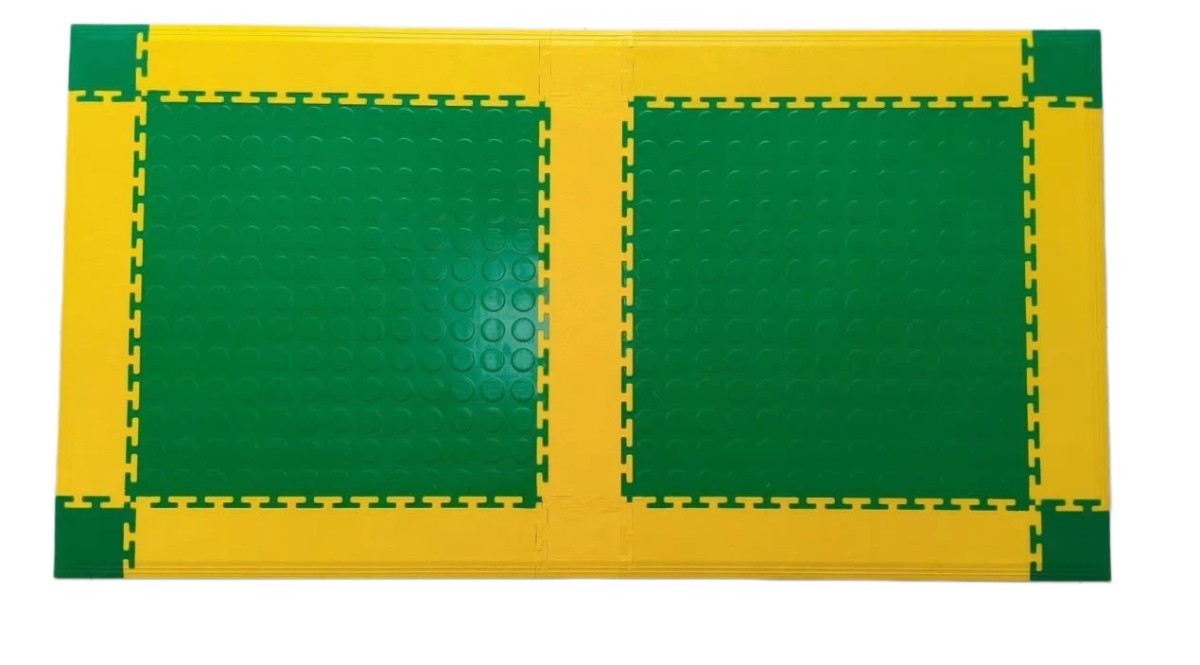

2png

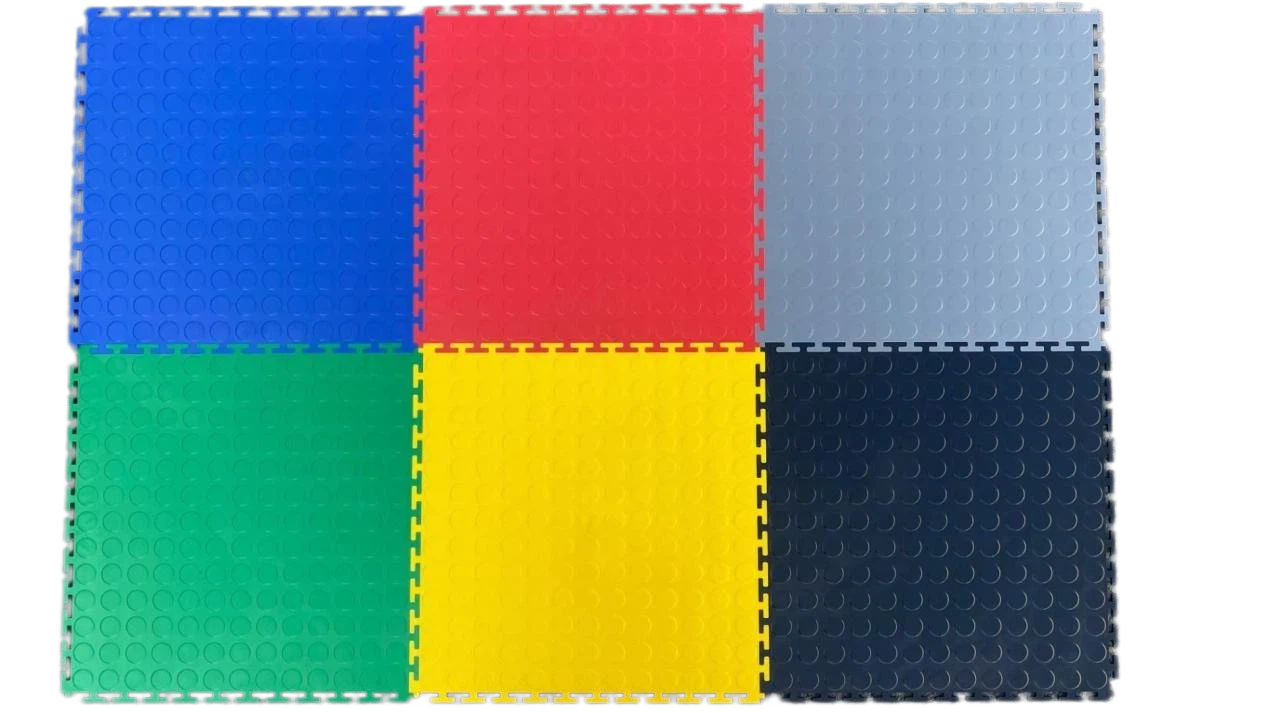

Colors

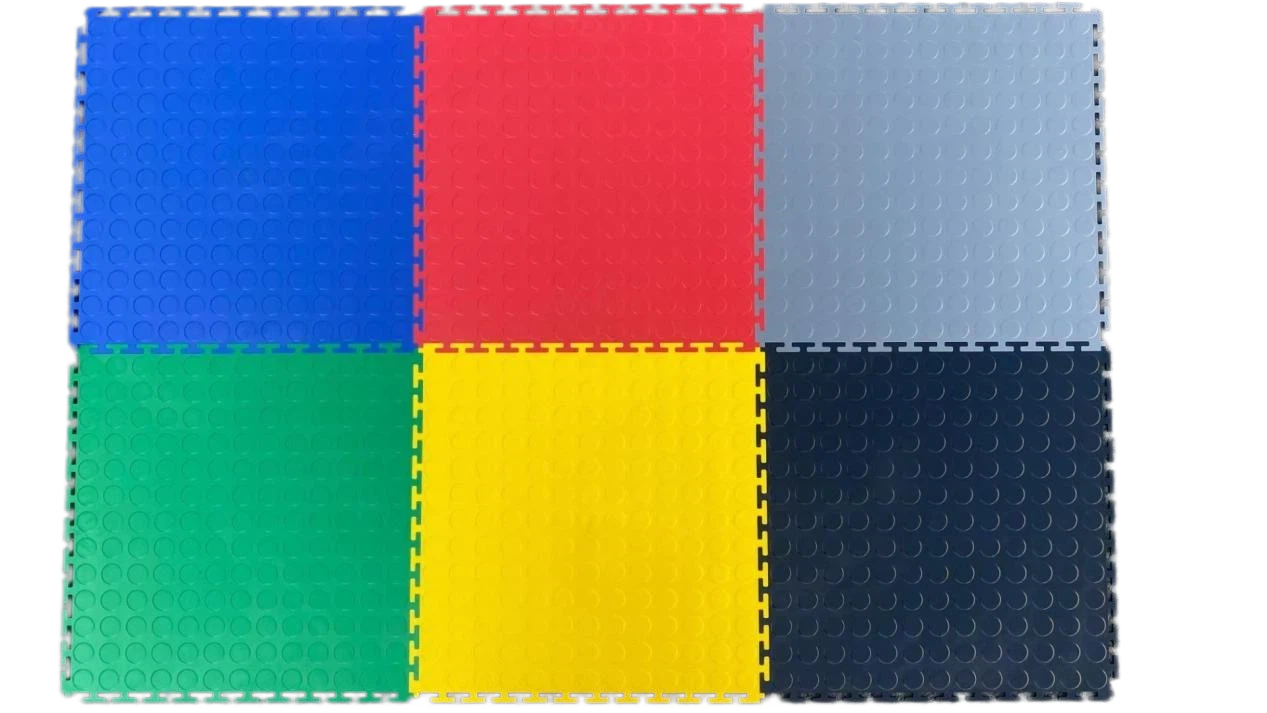

Discover our decors and colours

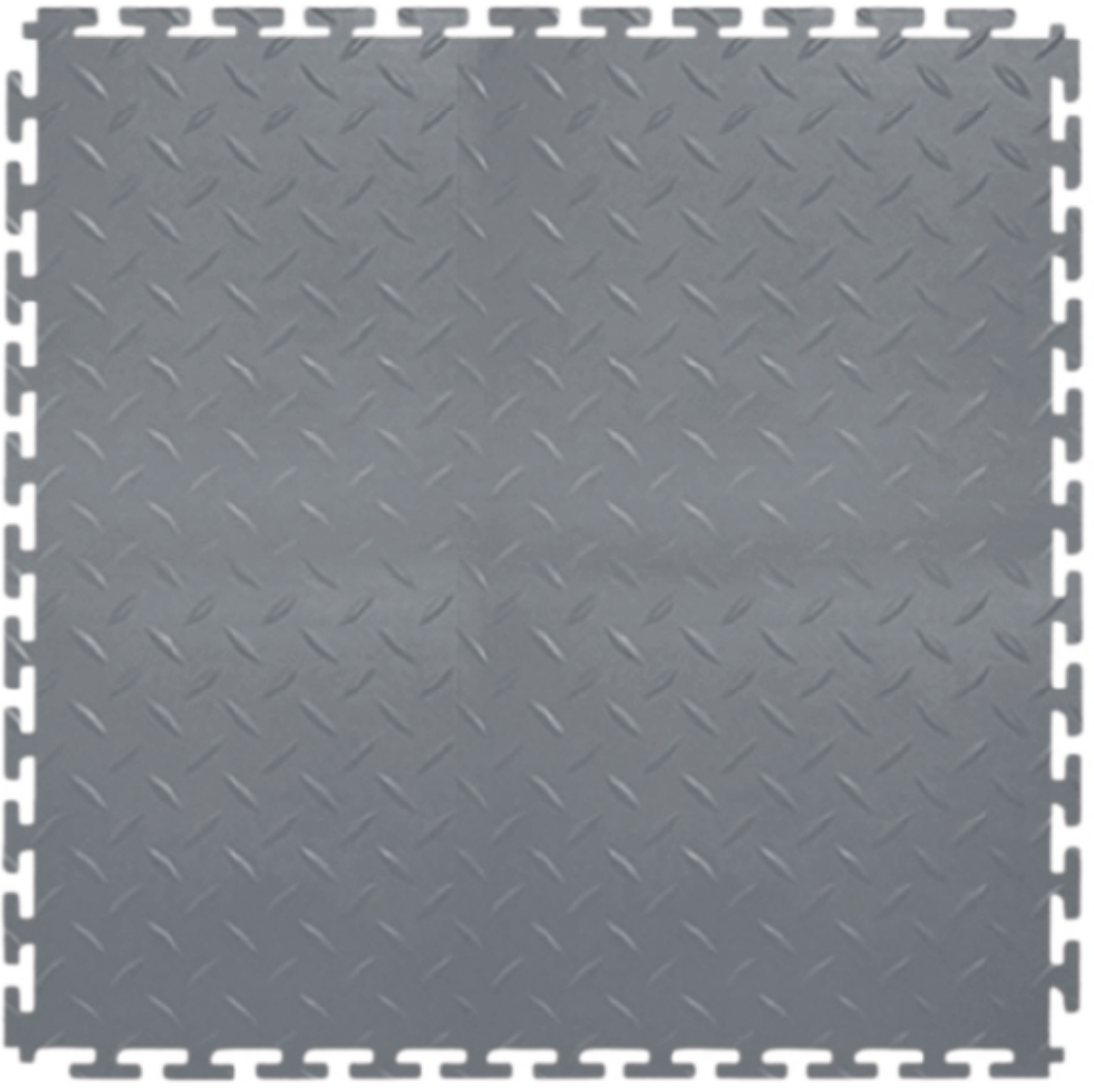

  • 1. Tyre Emboss
    Tyre Emboss
  • 2. Matt Emboss
    Matt Emboss

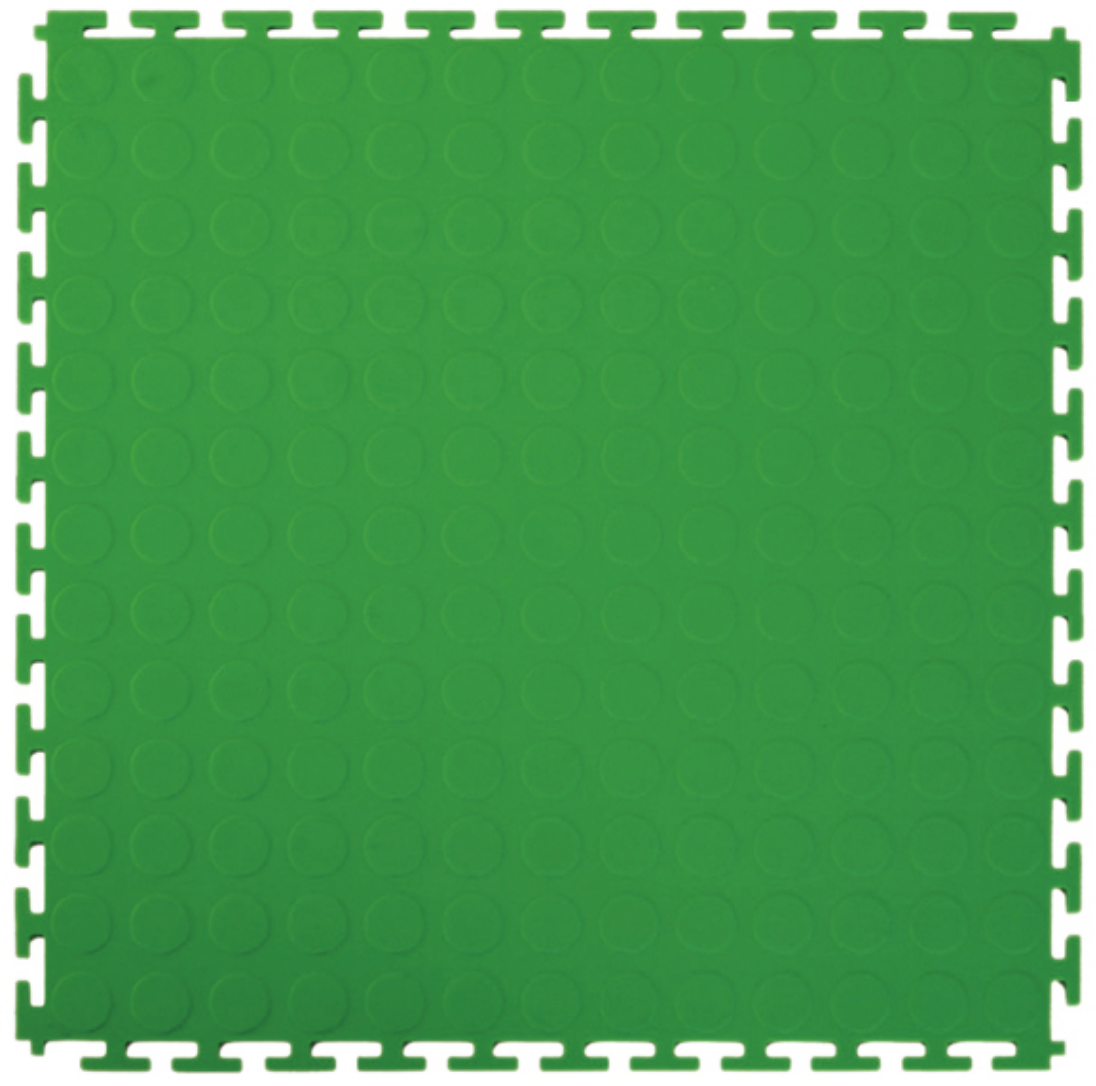

  • 3. Coin Emboss
    Coin Emboss

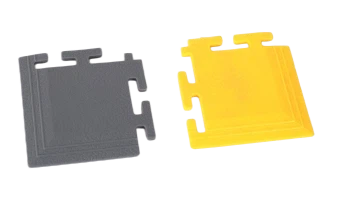

  • Corner
    Corner

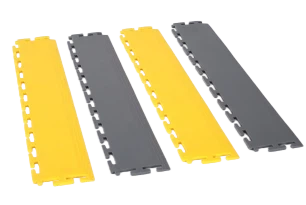

  • Ramp
    Ramp

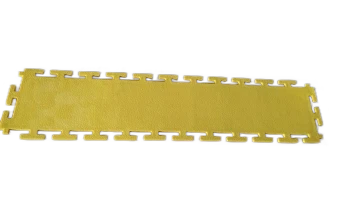

  • Transition
    Transition
  • black
    Black
  • blue
    Blue
  • grey
    Grey
  • green
    Green

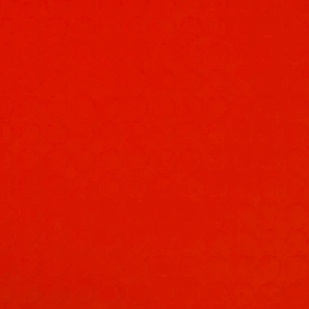

  • red
    Red
  • yellow
    Yellow

Performances

CLASSIFICATION

European classification

EN ISO 10874

class

34 - 43

Fire rating

EN 13501-1

class

Bf1-s1

Static electrical propensity

EN 1815

kV

<2

PERFORMANCE

Wear resistance

EN662

mm³

≤2

Type Binder content

EN ISO 10582

type

I

Dimensional stability

EN ISO 23999

%

≤0.25

Residual indentation

EN ISO 24343-1

mm

≤0.10

Initial curling

EN ISO 23999

mm

≤0.50

Castor chair test

ISO 4918


OK

Flexibility

ISO 24344

method A


No cracking

Colour fastness

EN ISO 105-B02

degree

≥ 6

ENVIRONMENT / INDOOR AIR QUALITY

VOC Emission (TVOC) after 28 days

EN ISO 16000

μg/m³

<100


Complementary Products

Matching Auxiliary Products

Alternative Products

Products that can be used as substitutes

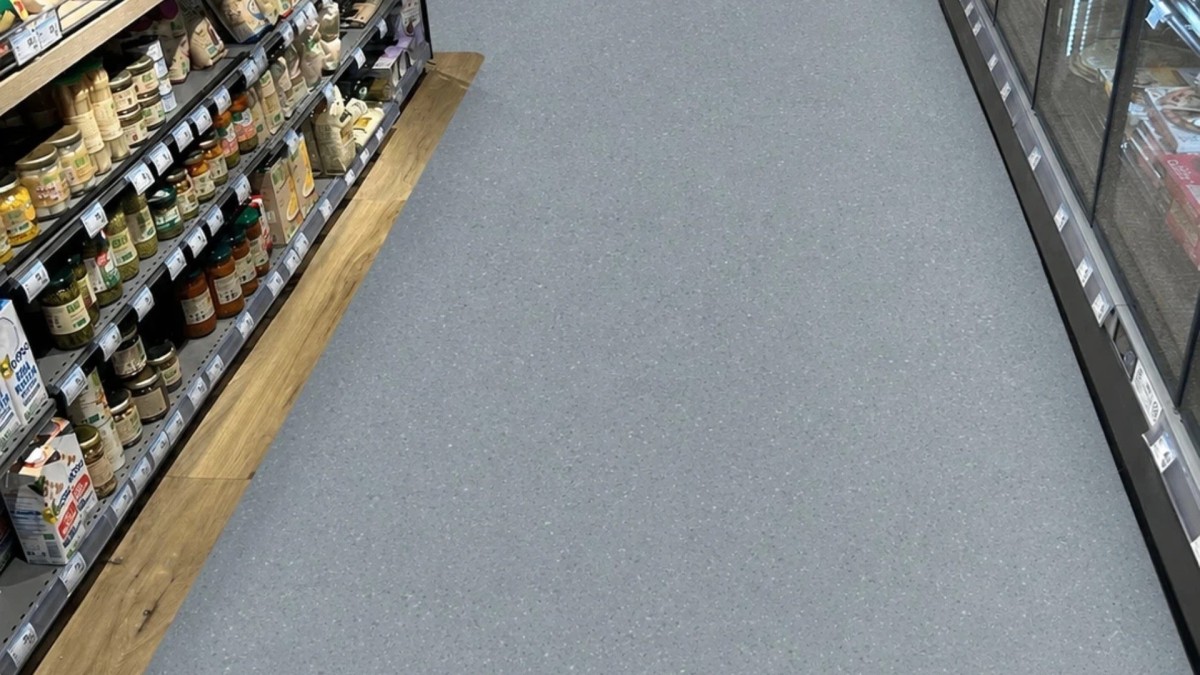

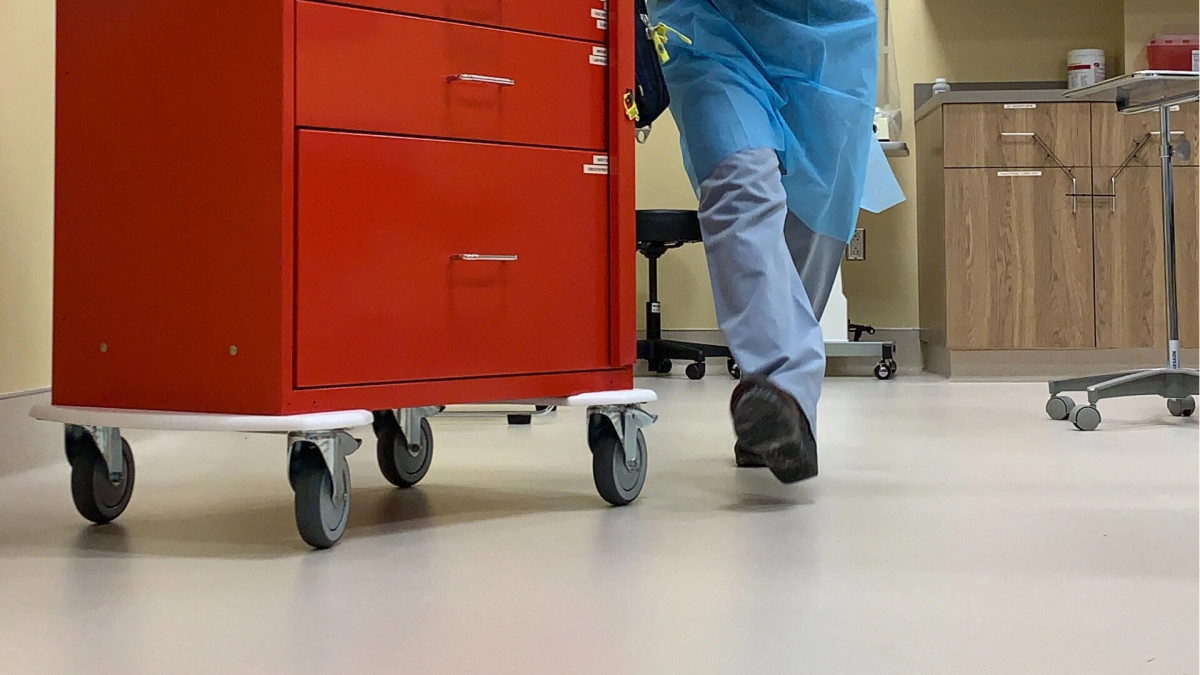

1.8 Oceanous缩略图及轮播图 (3)
